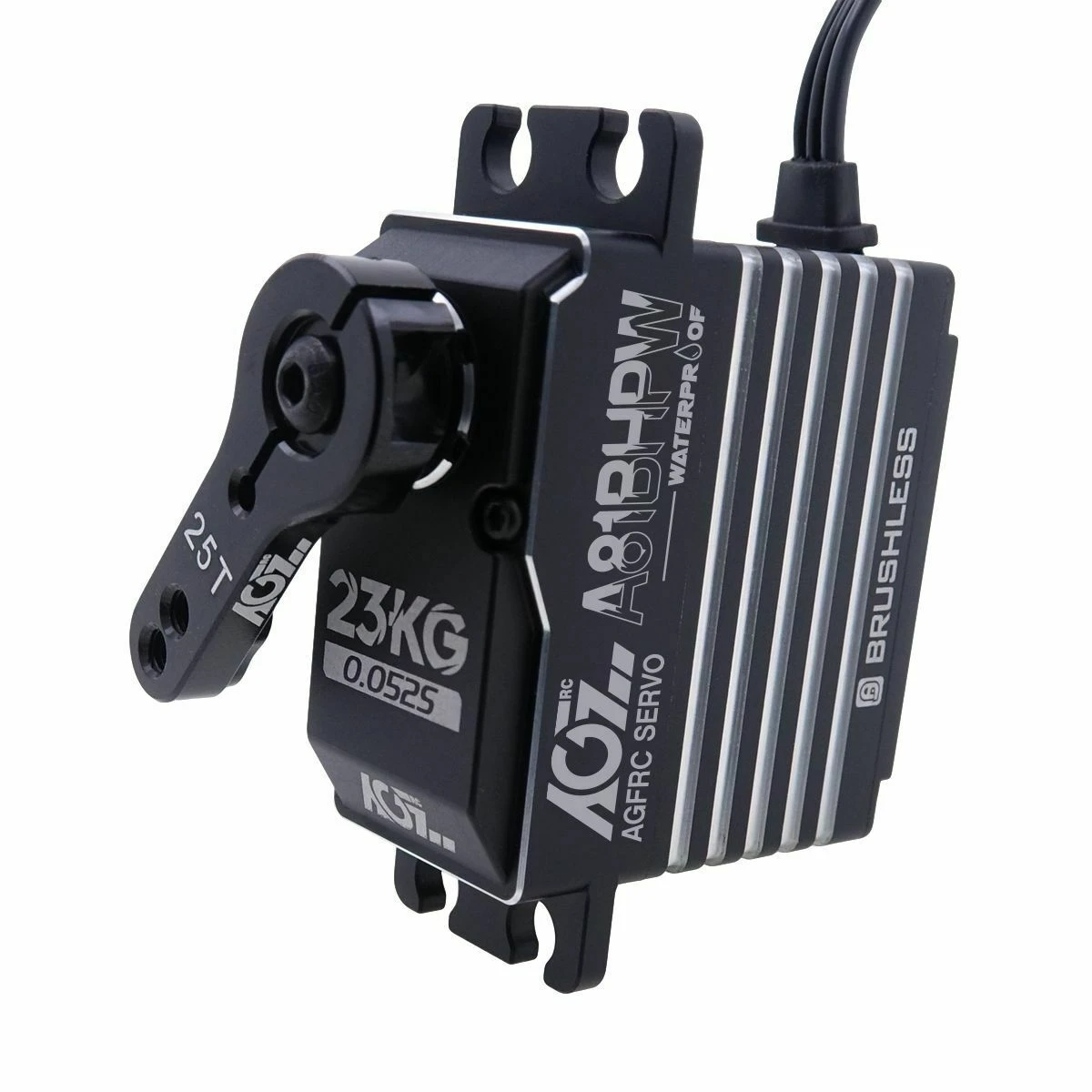

Brushless Servo 23KG 0.052sec HV AGF-RC A81BHPW Full Metal Case Waterproof UK



The A81BHPW is rated at 23kg torque at an incredibly quick 0.052 seconds.

This servo is just so fast, its the quickest we have seen offering this level of torque. If you want the fastest servo its here…

These servos do not have a potentiometer (variable resistor) for the position sensor, Instead they feature a solid state magnetic sensor that is less sensitive to vibration and wear and tear.



They feature a full CNC aluminium case and are waterproof, rated to IP67. They use super strong steel gears throughout along with 3 ball bearings. 25 tooth spline, use the same horns as Futaba or Savox etc. Supplied complete with horns and mounting grommets.

Complete with CNC Aluminium clamping Servo horn as pictured.

The servo can also be programed using AGF USB interface (sold separately). A wide range of parameters can be tuned and as this servo has no angle limitation it can even be setup as a sail winch or car winch.

Perfect for classes such as 1/8th Circuit cars (Electric and Nitro), GT on road, Large Aircraft / Helicopters.

1/10th scale 4 / 2wd Buggy.

Specs:

Full CNC Aluminium case, Waterproof rated to IP67

Solid State magnetic position Sensor (no more Potentiometers)

Precision Steel Gears used throughout

Full Aluminium CNC case for strength and excellent heat dissipation

Aluminium mounting tabs

Triple main ball bearings

25T output shaft (Futaba / Savox)

Torque ( 6.0V / 7.4V / 8.4V ) : 16 / 19 / 23 kg.cm

Speed ( 6.0V / 7.4V / 8.4V ) : 0.07 / 0.6 / 0.052 Sec/60°

Length; 40mm

Width; 20mm

Height; 37.5mm

Weight; 81g

Gear Material; Steel (spares available)

Motor type; Brushless
