Brushless Servo 33KG HV AGF-RC A66BHLW Full Metal Case Low Profile High Voltage

NEW Waterproof Low Profile Servo. Perfect for winter racing outdoors!

The A66BHLW is a low profile servo rated at a monstrous 33kg torque at an incredibly quick 0.068 seconds @8.4v.

These servos do not have a potentiometer (variable resistor) for the position sensor, Instead they feature a solid state magnetic sensor that is less sensitive to vibration and wear and tear.

Perfect for classes such as 1/10 Touring Car (EP & IC), 2WD Buggy, 4WD Buggy, Drifting, etc.

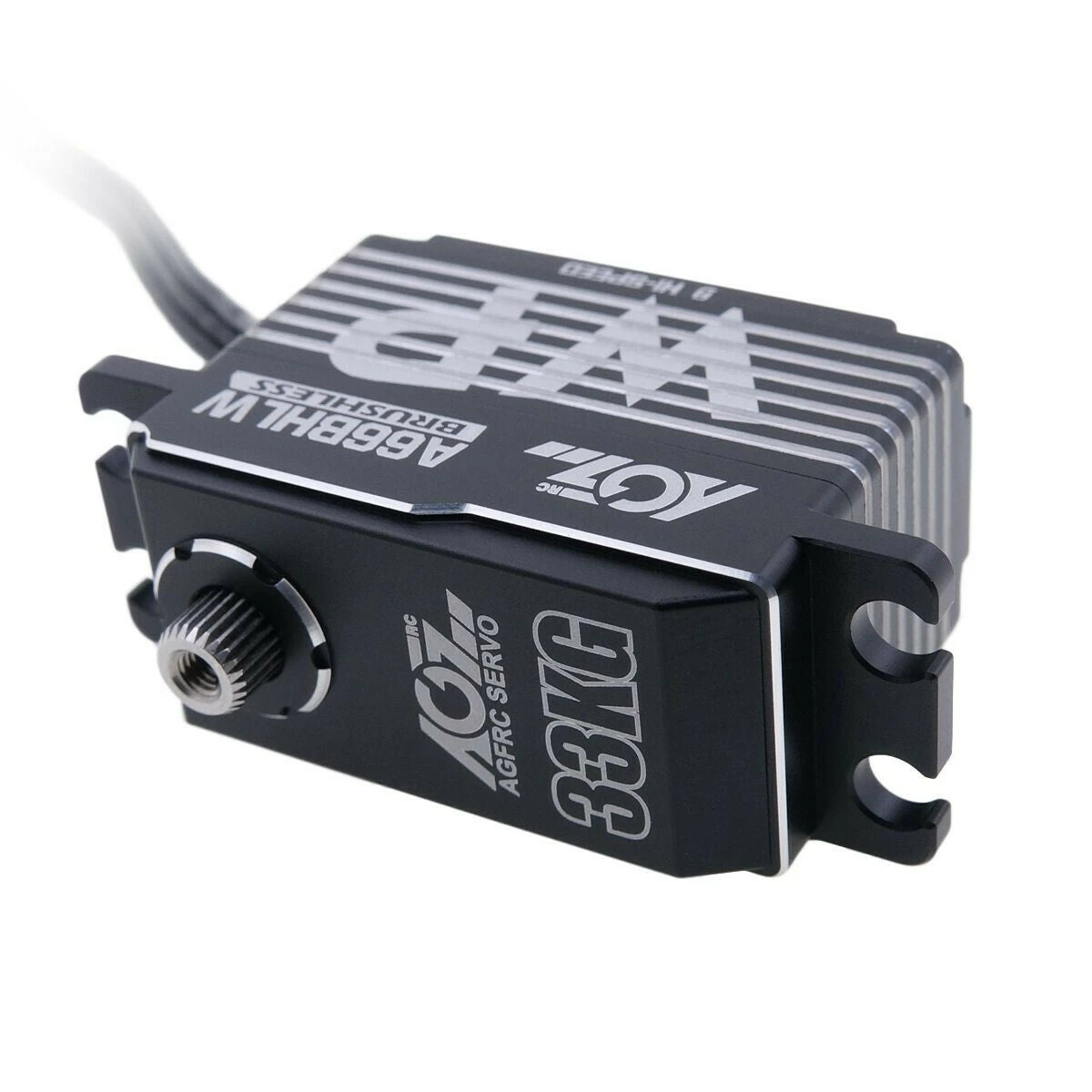

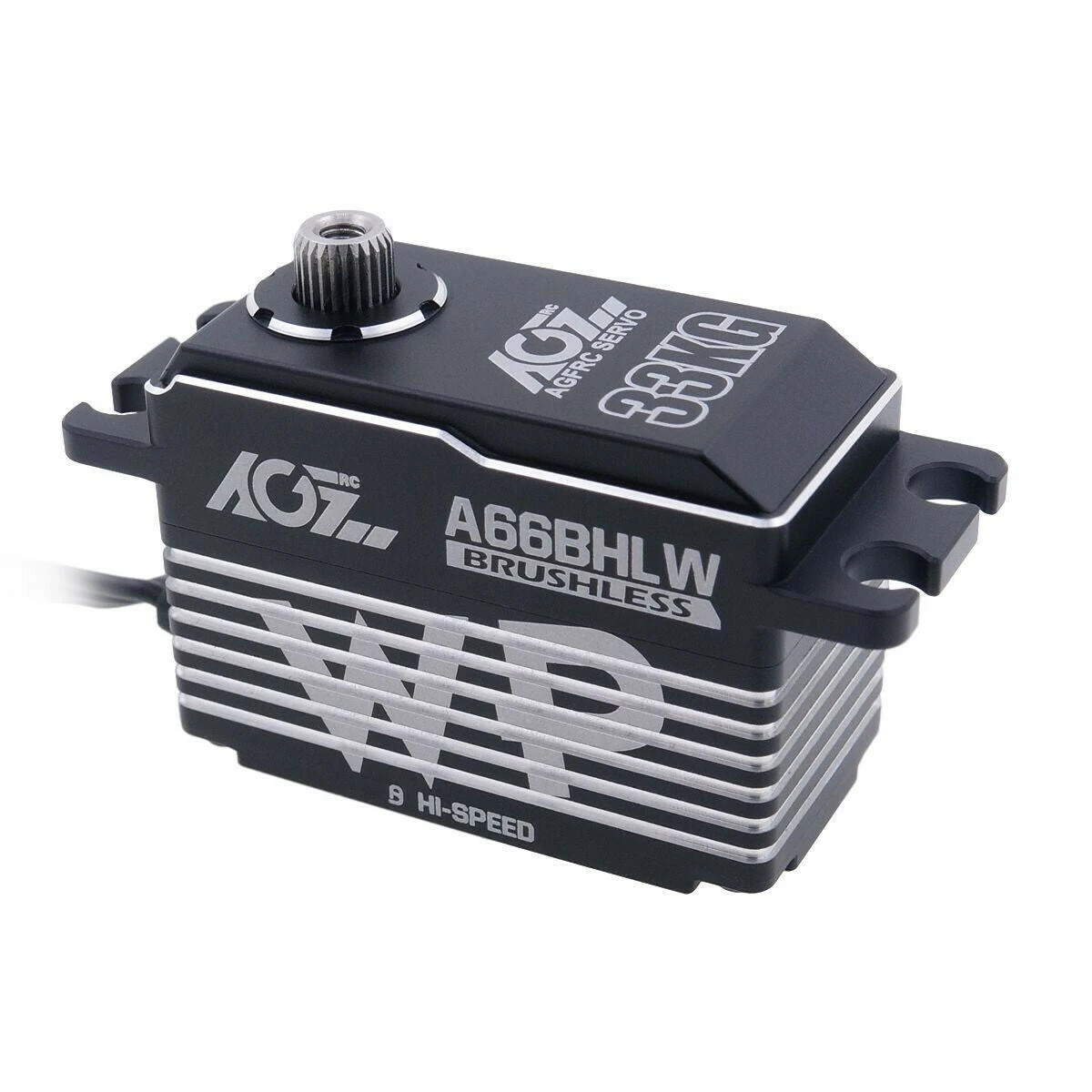

They feature a full CNC aluminium case, along with super strong steel gears throughout along with 2 ball bearings. The servo can also be programed using AGF USB interface (sold separately). 25 tooth spline, use the same horns as Futaba or Savox etc. Supplied complete with horns and mounting grommets.

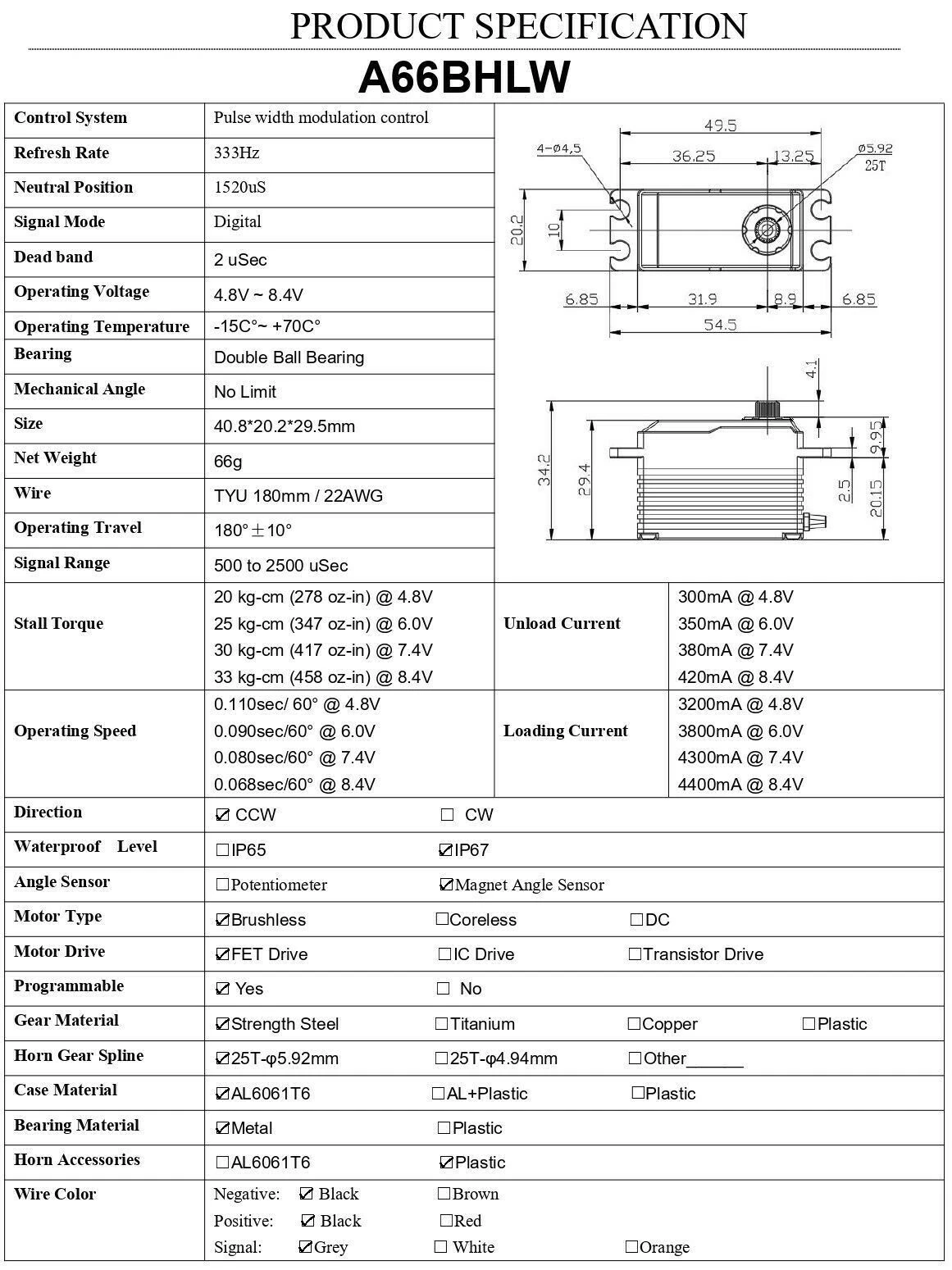

Specs:

Full CNC Aluminium case

Precision Steel Gears used throughout

Full Aluminium CNC case for strength and excellent heat dissipation

Aluminium mounting tabs

Dual main bearings

25T output shaft (Futaba / Savox)

Torque ( 6.0V / 7.4V / 8.4V ) : 25 / 30 / 33 kg.cm

Speed ( 6.0V / 7.4V / 8.4V ) : 0.09 / 0.08 / 0.068 Sec/60°

Length; 40.8mm

Width; 20.2mm

Height; 29.5mm

Weight; 66g

Gear Material; Steel (spares available)

Motor type; Brushless
