Coreless Servo 14KG .085s HV AGF-RC B45CHMZ Hybrid Case Low Profile High Voltage

Original price was: £32.00.Current price is: £22.40.

SKU: BGFUZ 6582839476267 Categories: Electrics, Servos

Your needs, our top priority.
Quality at its Finest
Protect Your Information, Shop with Safe Payments
No Compromise on Quality

Description
Reviews (0)

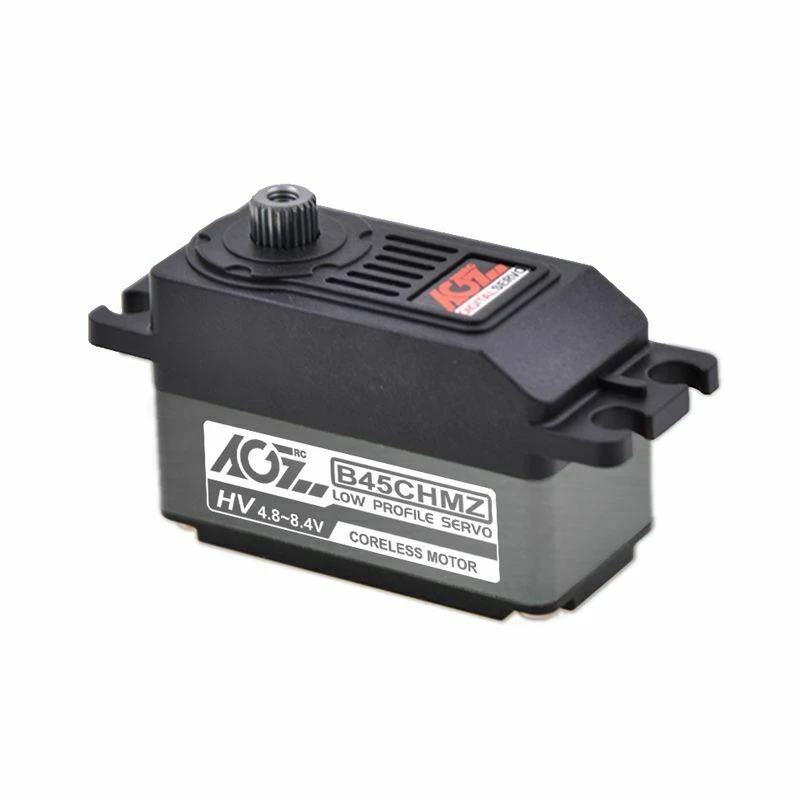

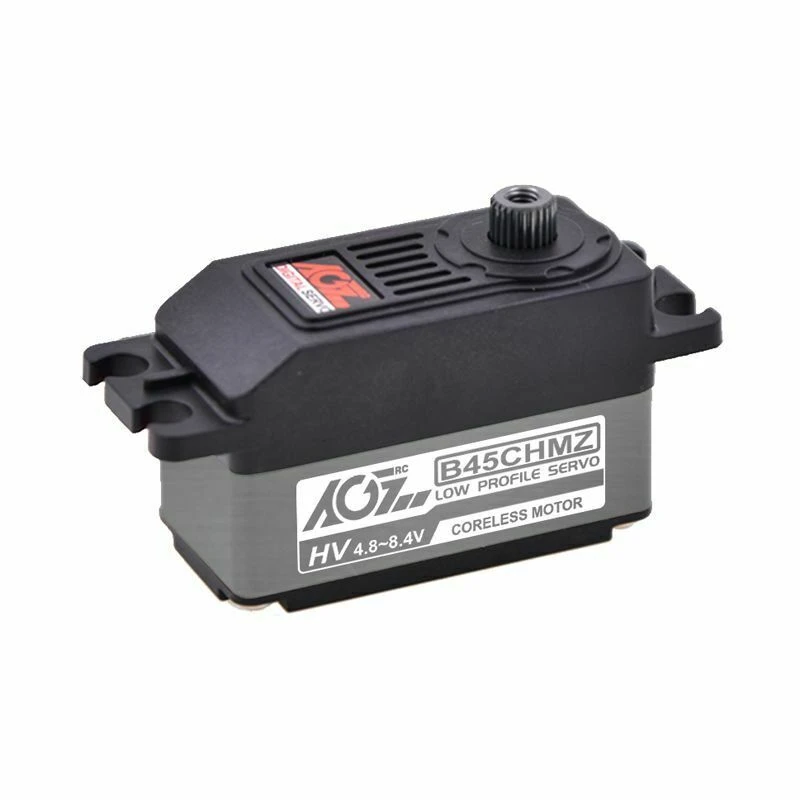

The B45CHMZ is a low profile servo rated at a massive 14kg torque at an incredibly quick 0.085 seconds @8.4v.

Perfect for classes such as 1/10 Touring Car (EP & IC), 2WD Buggy, 4WD Buggy, F1, Drifting, etc.

They feature a Hybrid Aluminium / Polymer case to provide a more light weight and cost effective solution. The Aluminium centre section also works as a heat sink to keep the servo cool. 25T tooth spline, use the same horns as Futaba or Savox etc. Supplied complete with horns and mounting grommets.

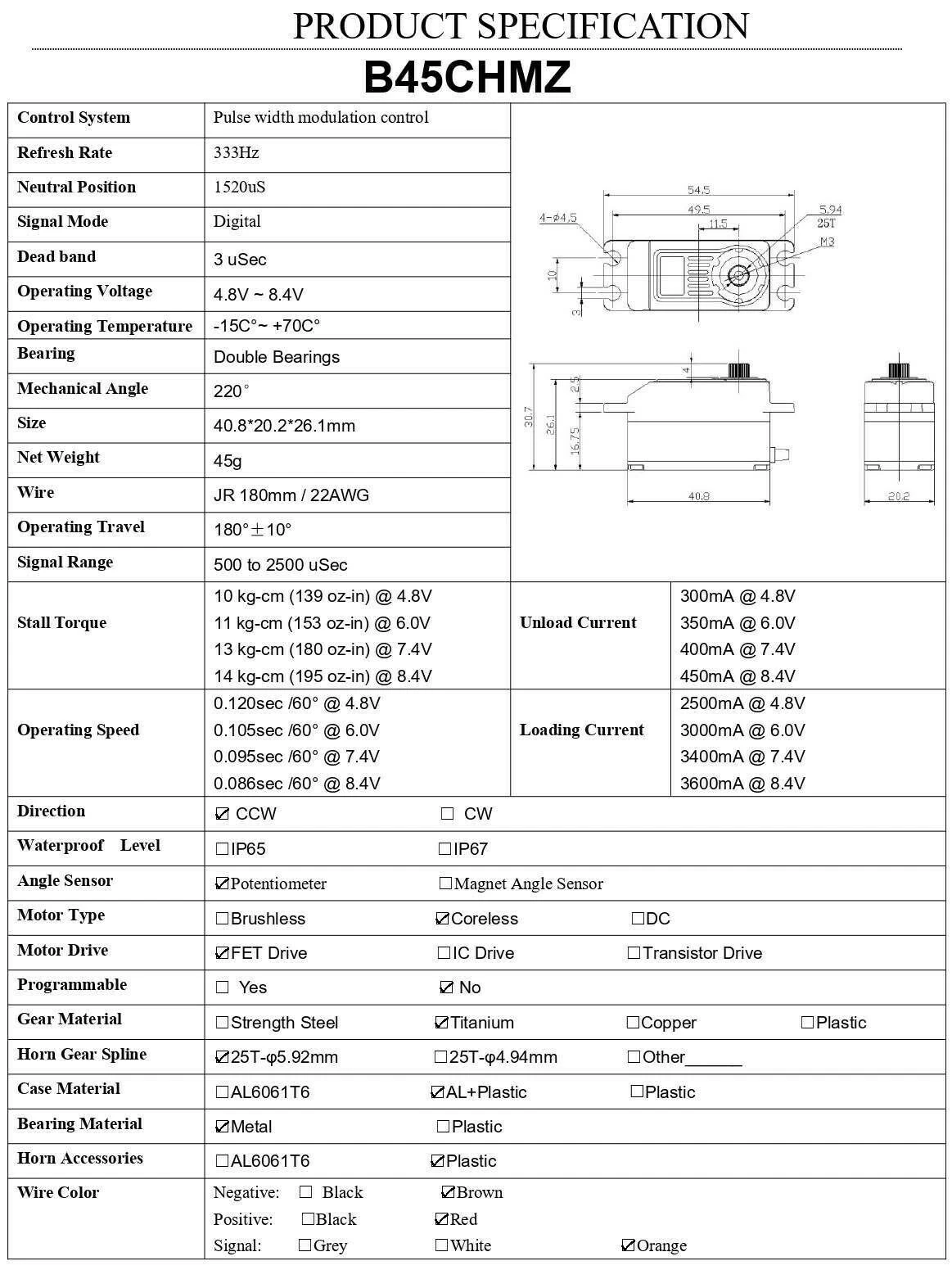

Specs:

HV compatible, suitable for all common receiver battery voltages (4.8-8.4v)

Precision Titanium Gears used throughout

Hybrid Aluminium / Polymer case for Light weight, strength and excellent heat dissipation

Dual main bearings

25T output shaft (Futaba / Savox)

Torque ( 6.0V / 7.4V / 8.4V ) : 11 / 13 / 14 kg.cm

Speed ( 6.0V / 7.4V / 8.4V ) : 0.105 / 0.095 / 0.085 Sec/60°

Length; 40.8mm

Width; 20.2mm

Height; 26.1mm

Weight; 45g
